N 5800H

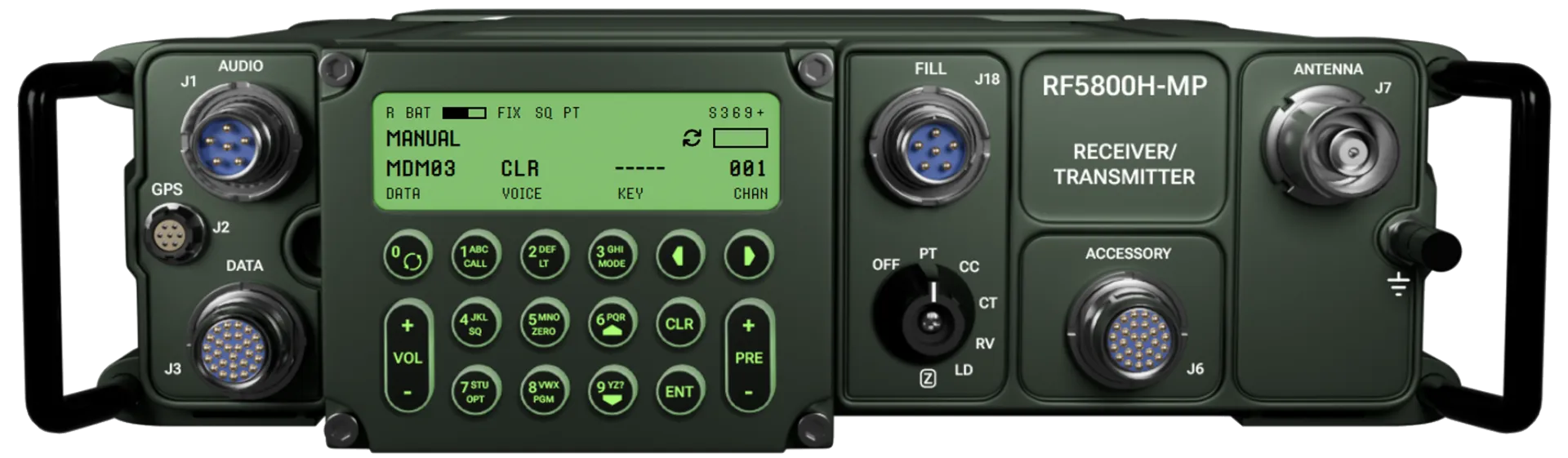

The N 5800H simulator is a professional-grade HF radio training solution that replicates the operation and user experience of N 5800H-MP class stations. Designed for military and civil training environments, it provides a faithful graphical and behavioral emulation of front and rear panels, display elements, and handset operation, enabling realistic practical exercises without the need for physical radio hardware.

The application supports a full set of operational features: power on/off, display of device states, modulation selection, frequency entry per channel, channel presets, and live monitoring (eavesdropping) of selected frequencies. The radio display persists the parameters set during the login session. If frequency, modulation, and mode match those of another simulated station, an acoustic (voice) link is established. Communication is simplex and active only while the PTT button is pressed; pressing PTT also mutes the receiving audio to emulate real-world behavior.

N 5800H integrates with the NowaSim ecosystem, enabling centralized management of multiple training stations over LAN. Instructors use a dedicated application to view station availability, current frequency/modulation/power settings, and PTT/SQUELCH/CARRIER statuses. They can remotely start, stop, switch simulators, and monitor ongoing sessions. All activities are logged for post-exercise analysis, assessment, and record keeping.

The simulator supports voice connectivity between different simulated radio types when physical radios or configurations allow, and it can simulate acoustic interference and equipment faults to train operators in handling degraded conditions. Scenario customization allows instructors to craft exercises tailored to specific training objectives, increasing the realism and pedagogical value of each session.

Training benefits

Significant reduction in operational and maintenance costs compared to live radios;
Elimination of field deployment costs and spectrum leasing fees;
Faster throughput of trainees with repeatable, safe, and measurable exercises;
Immediate recording and analysis of training outcomes;
Easy integration with evaluation and certification workflows.

Key features and technical data

Frequency range: 1.6 MHz – 59.9999 MHz;
200 programmable operating channels (PRESET);
75 programmable system settings;
Operating modes: FIX, HOP, ALE, 3G;
Modulations: LSB, USB, AME, CW, FM;
Graphical front and rear panel emulation and interactive display;
Realistic PTT behavior (simplex, receive muting during transmit);
Browser-based deployment (Firefox, Chrome) with an authorization system for secure access and administrator-managed accounts;
Shared server architecture supporting multi-station scenarios and voice links among simulators.

N 5800H delivers a modern, efficient training environment that balances operational realism with cost-effectiveness. It is ideal for units requiring repeatable, instrumented training of radio operators, supporting both basic competency drills and advanced, scenario-based exercises. As part of Nowatel's family of simulators, it integrates seamlessly into broader training systems to maximize readiness and instructional quality.
